Octagonal Precision Welding Table Engraved Scale For Precise Measurement

Octagonal Welding Table with Engraved Scale for Precise Measurement

The Octagonal Welding Table with Engraved Scale for Precise Measurement is a heavy-duty precision welding fixture platform designed for integrated operations of welding, assembly, positioning, measurement, and fixture installation. This high-precision worktable serves the welding, sheet metal, steel structure, and tooling fixture industries.

Technical Specifications

Feature	Specification
Table Shape	Octagonal (8-sided)
Table Material	High-strength cast iron / heavy steel plate
Table Size	800 mm / 1000 mm / 1200 mm (across flats)
Diagonal Size	Φ1130 mm / Φ1414 mm / Φ1697 mm
Table Thickness	20-30 mm
Working Height	700-850 mm
Scale Type	mm + inch dual scale
Surface Flatness	0.05-0.1 mm/m

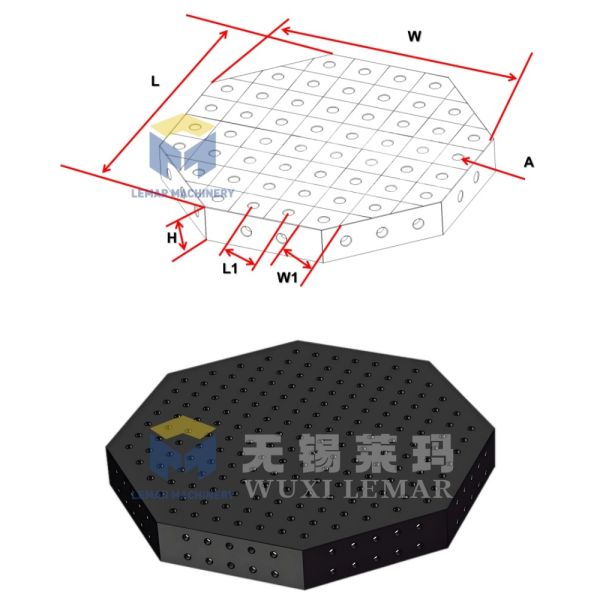

Octagonal Countertop Design

The work surface features an innovative octagonal shape rather than traditional square or round designs.

Simultaneous operation from 8 directions enables multi-station and multi-person collaborative work
Enhanced flexibility for workpiece rotation, angle welding, and pipe welding applications
Superior space utilization, ideal for precision welding of small and medium-sized parts

Permanently Engraved Scale System

Precision markings are directly engraved onto the work surface, eliminating temporary stickers or spray paint solutions. The engraved scale includes:

Millimeter markings (mm)
Inch markings (inch)
Angle lines for precise angular positioning
Center lines and baselines for accurate alignment

Key advantages of the engraved scale system:

High temperature resistance, wear resistance, and permanent adhesion
Direct measurement, marking, and positioning during welding operations
Significant improvement in welding accuracy and production efficiency

Functions and Advantages

This multi-purpose platform serves as a comprehensive welding, positioning, measurement, assembly, scribing, and tooling fixture system.

Key Performance Benefits

High Precision: Engraved scale and superior surface flatness ensure accurate workpiece dimensions
High Efficiency: Reduces time spent on repeated measurement, clamping, and alignment operations
High Durability: Heavy-duty construction and deep engraving ensure long-term performance without deformation or wear
Flexible Operation: Octagonal design enables simultaneous multi-directional and multi-station workflows
High Versatility: Compatible with various standard welding fixtures and suitable for multiple industrial applications

Advantages Over Traditional Square Workbenches

Octagonal design provides 8 operable sides compared to only 4 sides on square benches
Enhanced flexibility for angle welding and pipe welding applications
Multiple operators can work simultaneously without interference
Integrated engraved scale eliminates need for separate measuring tapes or squares
Superior precision, efficiency, and professional workflow capabilities
